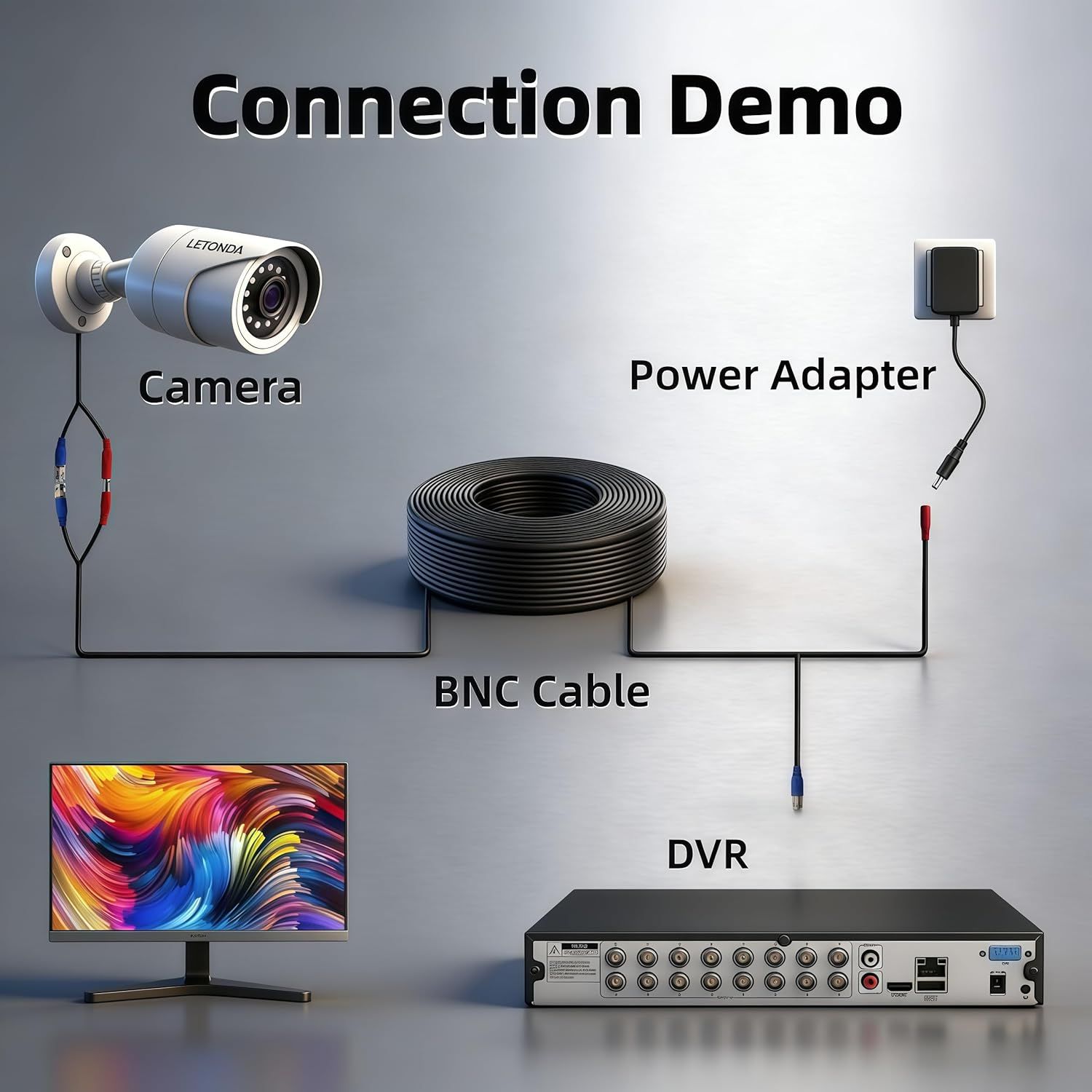

Demonstrates how to connect and set up the security camera system by showing the wiring path from camera through BNC cable and power adapter to the DVR and monitor.

BNC Video Cable: How to Use Images

Demonstrates how to connect and set up the security camera system by showing the wiring path from camera through BNC cable and power adapter to the DVR and monitor.

Brand
LETONDA
Category
Electronics › Security & Surveillance › Accessories › Surveillance Camera Cables
Image type
How to Use Images, Secondary Images
Design focus
Installation Setup; Wiring Diagram
Listing position
Image 7
Marketplace
United States
Best Sellers Rank
#65 in Surveillance Camera Cables
Full listing
See all 8 images in order
ASIN
B0F998BLNR
Save to a bookmark Like Free account. Keep the examples you like and come back to them.

See your listing next to your competitors

Paste your Amazon link. We score every image and show what the top sellers do differently. Your first comparison is free.

What this image does at a glance

Score
70 / 100 · Readable
Headline
Connection Demo
Headline height
6.8% of the image
Headline contrast
Lc 74
Text on the image
7.3% of the image, 6 blocks
Blurred to tile size
headline still readable

Listing bullet points

  • 【4mm Thickened & Anti-Break BNC Cable】Featuring 4mm thickened sheath, high-purity copper cores and multi-layer reinforcement, this cable delivers exceptional tensile strength and bend resistance. It maintains structural integrity against twisting, friction or pulling, eliminating breakage risks…
  • 【All-Weather Resistant & Stable HD Transmission】Precision-engineered with multi-layer shielding, this BNC surveillance cable withstands rain, snow and wind. It delivers high-definition video with no frame loss or noise for consistent indoor and outdoor performance
  • 【Multi-Length for All Surveillance Scenarios】Available in 16.4ft/33ft/50ft/66ft/100ft, the outdoor BNC coaxial cable fits small home, regular home and large commercial monitoring. Set up short/medium/long-distance surveillance smoothly with no signal degradation
  • 【Wide Compatibility with Top Brands】This cable works well with Hikvision and other top brands, plus most DVR camera systems on the market. It supports 960H/720p/960p/1080p/3MP/4MP/5MP resolutions and AHD/CVI/TVI cameras (for 5.5*2.1 mm DC power connectors only)
  • 【Complimentary BNC/RCA Connectors & Clips】Included BNC & RCA connectors double connection distance and act as interface converters for professional setups. Comes with 100 free cable wall clips to route and secure cables, eliminating clutter and tripping hazards
  • With lengths from 16.4ft to 100ft, easily install surveillance devices without distance limits.
