Provides step-by-step visual instructions showing how to connect the security camera system, including cable connections from camera to DVR to power adapter and monitor, helping shoppers understand…

BNC Cable 4x100FT: How To Secondary Images

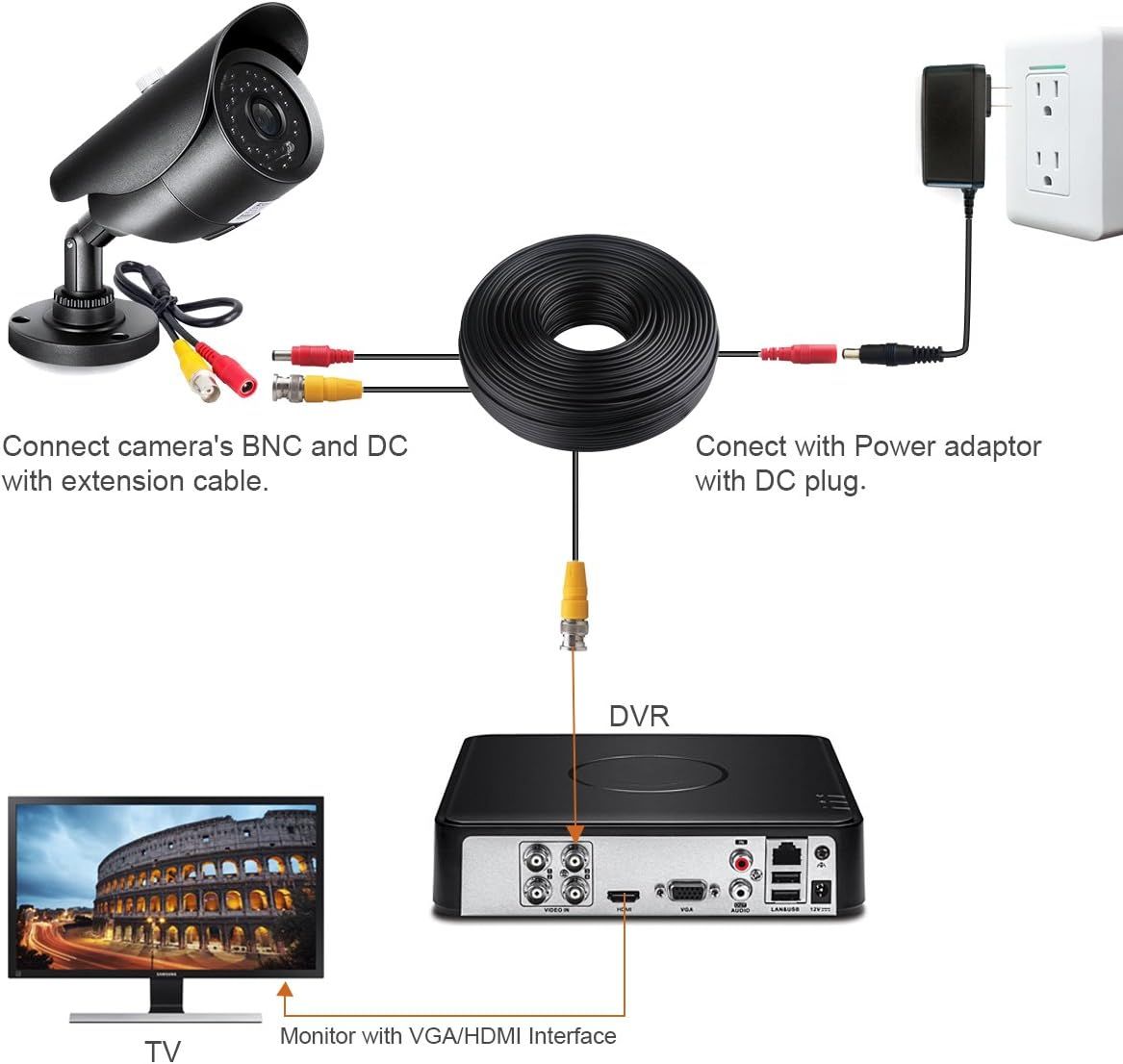

Provides step-by-step visual instructions showing how to connect the security camera system, including cable connections from camera to DVR to power adapter and monitor, helping shoppers understand the installation process.

Brand
WILDHD
Category
Electronics › Security & Surveillance › Accessories › Surveillance Camera Cables
Image type
How To Secondary Images, Infographics
Design focus
Installation Setup; Wiring Connections
