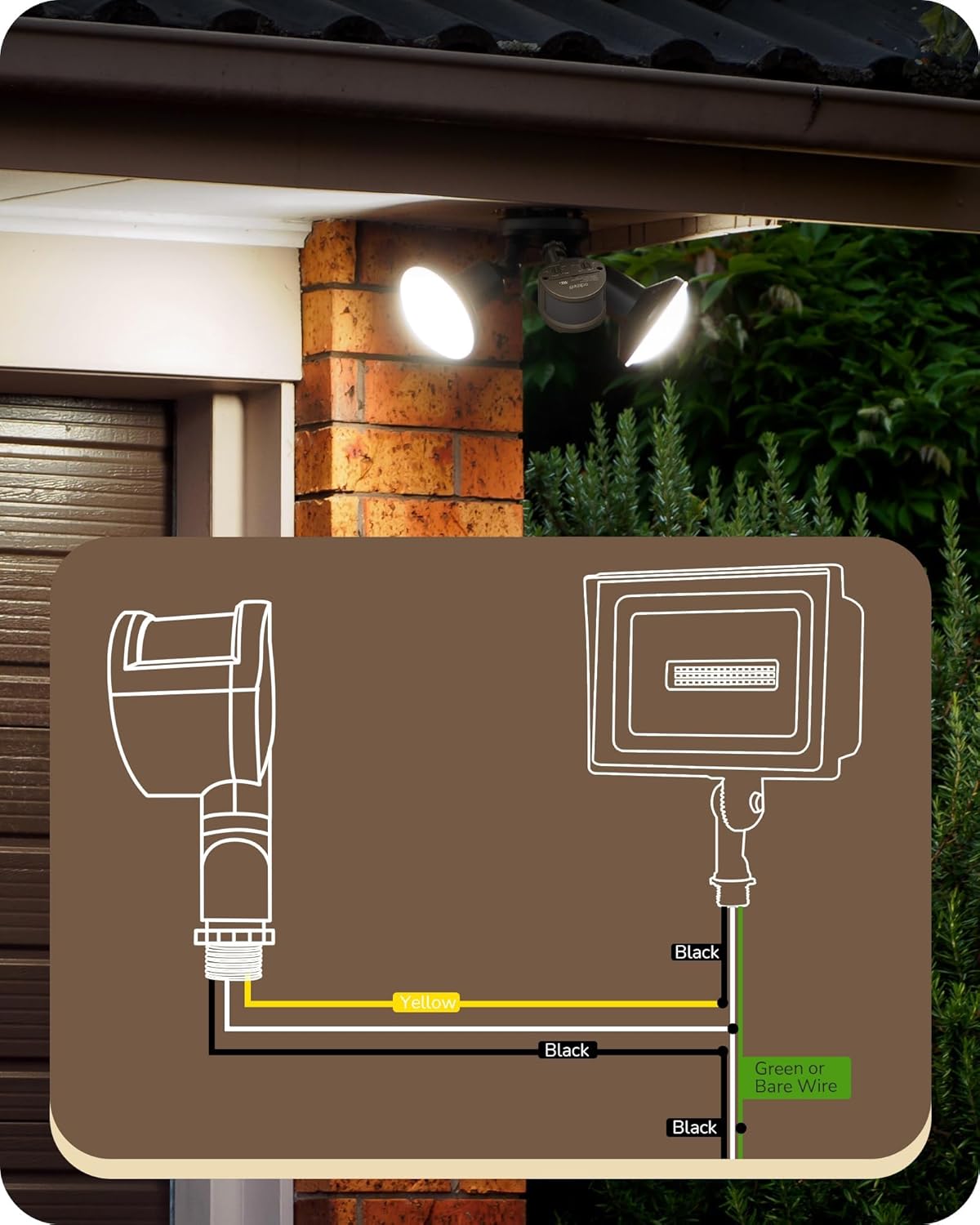

Demonstrates how to properly wire and install outdoor security lights, providing clear instructions for DIY installation.

EDISHINE Motion Sensor: How to Use Images

Demonstrates how to properly wire and install outdoor security lights, providing clear instructions for DIY installation.

Brand
EDISHINE
Category
Electronics › Security & Surveillance › Motion Detectors
Image type
How to Use Images, Secondary Images
Design focus
Wiring Installation
Listing position
Image 7
Marketplace
United States
Best Sellers Rank
#4,856 in Electronics (See Top 100 in Electronics) #14 in Motion Detectors (Electronics)
Full listing
See all 7 images in order
ASIN
B09TZHL9JN
Save to a bookmark Like Free account. Keep the examples you like and come back to them.

See your listing next to your competitors

Paste your Amazon link. We score every image and show what the top sellers do differently. Your first comparison is free.

What this image does at a glance

Score
8 / 100 · Unreadable small
Headline
Black
Headline height
1.7% of the image
Headline contrast
Lc 30
Text on the image
0.5% of the image, 5 blocks
Blurred to tile size
headline no longer readable

Listing bullet points

  • 【3 Modes Control】[AUTO]:At night, activate connecting devices once detecting motion and OFF after a preselected delay time; [DUSK TO DAWN]: work automatically at dark and not be triggered in the daytime; [Manual Override Mode]: turn wall switch OFF and ON within 3 seconds, devices will keep ON for…
  • 【 Adjustable Delay Time & Detection Range】Delayed OFF time after motion is detected in auto mode can be adjusted from 0 to 10min(s), and the sensing range can reach up to 60 feet at 180° detection angle, high sensitivity motion detector within 10-600s keeps your security and convenience
  • 【Adjustable Sensor Neck】With 180 degrees vertically, 360 degrees horizontally adjustable sensor neck, available to adjust the motion sensor to any different angles according to your needs, this motion sensor switch allows to accurate area monitoring without being triggered accidentally
  • 【Easy to Install & Save Money】Come with 3 wire nuts in different colors, this outdoor flood light motion sensor is easy to wire and connect to the power supply and lights; great replacement for motion security floodlight sensor, cheaper than buying a whole new flood light kit; UL listed
  • 【Wide Application】Wide range of input: 120V AC 60HZ, the motion sensor switch is suitable for most indoor/outdoor wall and eave mount applications, such as LED bulbs (max.200W), incandescent lamps (max.500w) and flood lights in your garage, yard, driveway, porch, hall way, swimming pool area, etc
